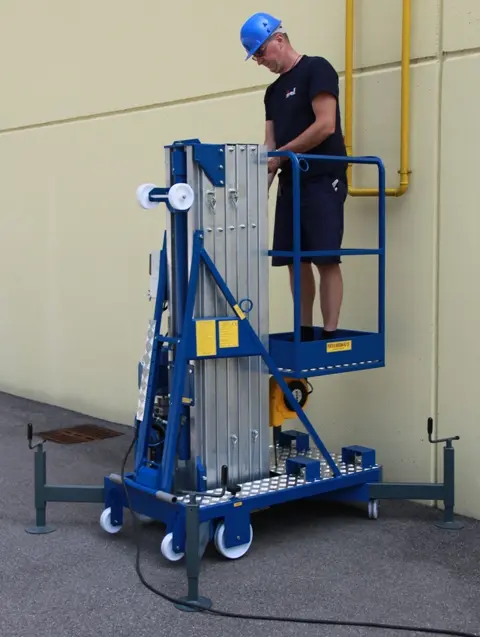

PID Passenger lift - Safe and efficient working at height in compact spaces
The PID passenger lift provides a safe and efficient way to work at height in confined spaces, as often occurs in offices, shops, hotels, public buildings or narrow aisles in industrial environments.
| Warranty: 2 year |
PID Passenger lift - Safe and efficient working at height in compact spaces
The PID passenger lift provides a safe and efficient way to work at height in confined spaces, as often occurs in offices, shops, hotels, public buildings or narrow aisles in industrial environments.
Thanks to its compact design, the PID lift is also ideal for applications such as order picking and document retrieval from archive storage. The user simply steps onto the platform and raises himself to the desired working height. After completing the work, the lift can be quickly lowered and stored in a practical location.
The mast is mounted on self-lubricating nylon rollers, providing extra stability - even in cold or very hot weather conditions.
Technical properties:
- Suitable for both indoor and outdoor use (certified)
- Operation and emergency stop on both platform and undercarriage
- Main switch for complete machine locking
- Chain drive for a high level of safety
- Double-chromed rod with oil collection system
- Automatic blocking in case of mechanical failure
- Aluminium lifting mechanism with controlled bending force
- Emergency lowering valve
- Forklift pick-up points for easy transport
- Floor-friendly, non-stretching tyres
- Fixed rear wheels with locking and tilting mechanism
- Power supply: 12 V motor or 220 V / 50 Hz - 0.75 kW
- Steel outriggers with ergonomic screw spindles
- Capacity: 1 person (max. 120 kg)
Options:
Power and air connection on the platform
Self-propelled version (PID10S)
Compact model without stamping
Explosion-proof design (pneumatic)
Modellenoverzicht:
| Model | Werkhoogte (m) | Platformhoogte (m) | Capaciteit (kg) | Opgevouwen hoogte (m) | Platformhoogte gesloten (cm) | Lengte (m) | Breedte (m) | Platform (m) | Afm. met afstempeling (m) | Snelheid (m/s) | Wieldiameters achter / kantelbaar (mm) | Gewicht zonder / met afstempeling (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PID7 | 7,00 | 5,00 | 120 | 1,98 | 70 | 1,28 | 0,80 | 0,65 x 0,65 | 1,60 x 1,40 | 0,20 | 200 / 125 | 290 / 330 |
| PID8 | 8,41 | 6,41 | 120 | 1,98 | 70 | 1,28 | 0,80 | 0,65 x 0,65 | 1,60 x 1,40 | 0,20 | 200 / 125 | 325 / 365 |
| PID10 | 9,80 | 7,80 | 120 | 1,98 | 70 | 1,28 | 0,80 | 0,65 x 0,65 | 1,80 x 1,60 | 0,20 | 200 / 125 | 360 / 400 |
| PID12 | 12,00 | 10,00 | 120 | 2,38 | 70 | 1,28 | 0,80 | 0,65 x 0,65 | 1,80 x 1,60 | 0,20 | 200 / 125 | 400 / 400 |
