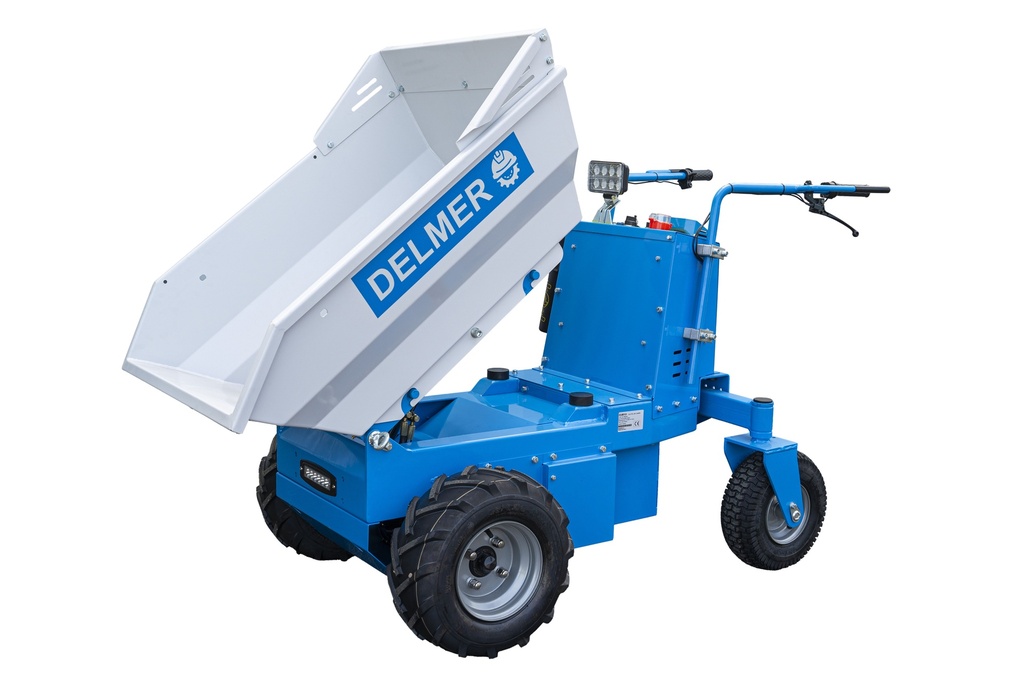

Electric Mini Dumper Hydraulic tipping 8 work hours (73 cm wide)
EMD500S
Width: 73 cm
Bucket capacity: 280L
Max. load: 500 kg
Verwachte levering 05-2025
| Weight: 240 kg |
| Brand: Delmer |
| Battery: 48V 20Ah |
| Motor: 1000W |
| Working time: 8-10 hours per battery |
| Warranty: 5 year |
| Loading capacity: 500 kg |
| Capacity tipping bucket: 280 liter |
| Width: 73 cm |
Make an appointment for a demo in our showroom
Wij staan voor u klaar, het is mogelijk telefonisch contact met ons op te nemen via: +31 (0) 134679127 of via het contact formulier.
Product description:
The EMD500S is the narrower version of the EMD500 and offers powerful performance in a compact size. At only 73 cm wide, you can easily drive through a front door, for example. The frame, wheelbase and cargo box are made narrower, making this battery dumper even more manoeuvrable in tight spaces.
Equipped with a reliable 1000-watt 48-volt motor, the EMD500S offers all the advantages of electric drive: minimal noise production, no expensive fuel costs, no unpleasant odours or harmful emissions, less maintenance and no start-up problems like petrol engines. This battery dumper comes with a 5-year warranty, underlining our quality.
Versatile: Thanks to its electric drive, the EMD500S is suitable for both indoor and outdoor use, with an operating time of 8 hours.
With front-wheel drive and wide swivel wheels at the rear, the EMD500 guarantees optimum mobility on various surfaces without ruts. Thanks to the pivoting rear axle, the dumper remains stable even at a maximum gradient of 25 degrees. With a ground clearance of 13 cm, this battery-powered dumper is suitable for all kinds of terrains.
The EMD500 has an impressive load capacity of 500 kg and makes tipping the bucket easy with a hydraulic system. At the touch of a button on the control panel, the bucket moves up or down, without any effort on your part.
Optimal safety: Safety is a priority with the EMD500S. The dumper is equipped with a red emergency stop lever on the left handlebar and an electronic brake function that triggers immediately when stopped. A lockable main switch and ignition key provide additional security. In addition, the dumper is equipped with LED lighting on the control panel and at the front for use in dark conditions.
We offer a comprehensive 5-year warranty on the EMD500 battery dumper (excluding wear and tear parts).
Service: Delmer workshop in Dongen
Specifications:
- Warranty: 5 years
- DC motor: 1000W
- Battery: 48V 20Ah lead-acid battery
- Load capacity: 500kg
- Track width wheels: Front 6. 50-8, rear 5.00-6
- Speed: Low: 0-2.5 km/h, middle: 0-5 km/h, max: 0-6 km/h, reverse: 0-2 km/h
- Working time: 8-10 hours
- Charging time: 8 hours
- Tilting: Hydraulic
- Weight: 240 kg
- Total size: 1771 x 891 x 1114 mm
