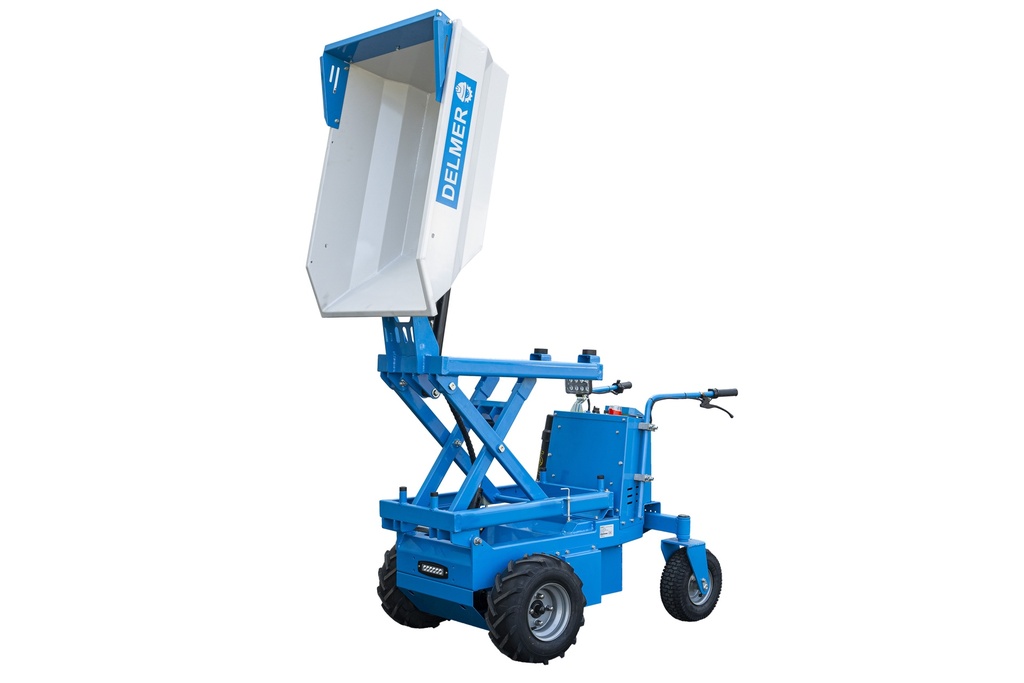

Electric Mini Dumper High-Tip Hydraulic tipper 8 working hours (73 cm wide)
EMD500HLS
Width: 73 cm
Bucket capacity: 280L
Max. load: 500 kg
5 jaar garantie
Verwachte levering 04-2025
| Weight: 298 kg |
| Brand: Delmer |
| Battery: 48V 20Ah |
| Motor: 1000W |
| Working time: 8-10 hours per battery |
| Warranty: 5 year |
| Loading capacity: 500 kg |
| Capacity tipping bucket: 280 liter |
| Width: 73 cm |
| Max. Lift Hoogte: 1.4 m |
Product description:
The EMD500HLS battery dumper offers powerful performance in a more compact size and is equipped with a reliable 1000-watt 48-volt motor. Our EMD500HLS stands out with a 5-year warranty and an additional High-Lift function. Thanks to its narrower width of 73 cm, this dumper is ideal for use in tight spaces and can more easily drive through a standard door, for example.
The EMD500HLS offers all the advantages of electric drive: minimal noise production, no expensive fuel costs, no unpleasant odours or harmful emissions, less maintenance and no start-up problems like petrol engines.
Versatile use:
Thanks to its electric drive, the EMD500HLS is suitable for both indoor and outdoor use, with an operating time of 8 hours.
Suitable for All Terrains: With front-wheel drive and wide swivel wheels at the rear, the EMD500HL guarantees optimal mobility on various surfaces without track formation. Thanks to the oscillating rear axle, the dumper remains stable even at a maximum incline of 25 degrees. With a ground clearance of 13 cm, this battery-powered dumper is suitable for all kinds of terrains.
Hydraulisch kiepen & maximaal laadvermogen van 500 kg: The EMD500HL boasts an impressive load capacity of 500 kg and makes tipping the load bed effortless with a hydraulic system. With the press of a button on the control panel, the load bed moves up or down without any effort on your part. The High-Lift function allows the tipping bed to be lifted up to 1.4 meters, providing extra flexibility when unloading loads.
Optimal safety: Safety comes first with the EMD500HLS. The dumper features a red emergency stop lever on the left handlebar and an electronic brake function that triggers immediately when stopped. A lockable main switch and ignition key provide additional security. In addition, the dumper is equipped with LED lighting on the control panel and on the front, allowing you to work safely even in dark conditions.
We offer a comprehensive 5-year warranty on the EMD500HL battery dumper (excluding wear and tear parts).
Service: Delmer workshop in Dongen
Specifications:
- Warranty: 5 years
- DC motor: 1000W
- Battery: 48V 20Ah lead-acid battery
- Load capacity: 500kg
- Track width wheels: Front 6. 50-8, rear 5.00-6
- Speed: Low: 0-2.5 km/h, middle: 0-5 km/h, max: 0-6 km/h, reverse: 0-2 km/h
- Working time: 8-10 hours
- Charging time: 8 hours
- Tilting: Hydraulic
- Weight: 298 kg
- Total size: 1708 x 874 x 1258 mm
